Digital Automatic Voltage Regulator
Beltrame CSE - AVR S2006

AVR S2006

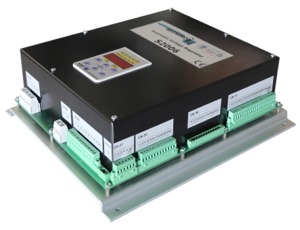

Digital Voltage Regulator mod. S2006

Compatible with: Basler Electric, ABB, Caterpillar and Leroy Somer.

It has six different control functions: Voltage Regulation (AVR), Regulation in open ring (PWN), Power factor regulation (PF), Reactive Power Regulation (VAR), Manual control of the Excitation Current (FCR), Manual control of the Excitation Voltage (FVR).

S2006 can be equipped in the back side with an Ethernet communication port optional.

Max output current : 15A.

Max output tension: ≥ 300 Vdc

Max output current for 10 sec.: 30A.

Frequency range in the aux input:

40Hz ÷ 500Hz

Operating temperature: 0°C ÷ +60°C

Precision:  ≥ 0,25%

S2006 satisfy completely the new edition of the CEI 0-16, CEI 0-21, allegato terna A70 norm.
