Digital Automatic Voltage Regulator
Beltrame CSE - AVR S2014

AVR S2014

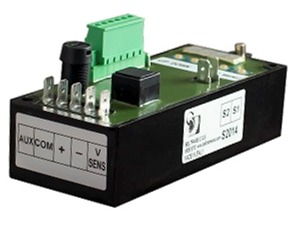

Digital Voltage Regulator mod. S2014

Universal and compatible with: Basler Electric, ABB, Caterpillar and Leroy Somer.

It has four different control functions: Voltage Automatic Regulation (AVR), Current Regulation (FCR), Power factor regulation (PF), Reactive Power Regulation (VAR).

Max output current: 8A.

Max output tension: ≥ 160 Vdc

Max output current for 10 sec.: 16A.

Frequency range in the aux input:

40Hz ÷ 400Hz

Operating temperature: -40°C ÷ +80°C

Precision:  ≥ 0,25%

S2022 satisfy completely the new edition of the CEI 0-16, CEI 0-21, allegato terna A70 norm.





Chiedi un'offerta
Icona pdf S2014 Data Sheet
Icona pdf MANUAL S2014 rev1
Icona pdf S2014 Connection diagrams
