Digital Automatic Voltage Regulator
Beltrame CSE - AVR S2022

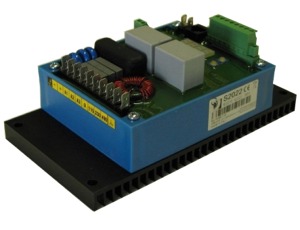

AVR S2022

Digital Voltage Regulator mod. S2022

Universal and compatible with: Basler Electric, ABB, Caterpillar and Leroy Somer.

It has four different control functions: Voltage Automatic Regulation (AVR), Current Regulation (FCR), Power factor regulation (PF), Reactive Power Regulation (VAR).

Max output current : 10A.

Max output tension: ≥ 250 Vdc

Max output current for 10 sec.: 20A.

Frequency range in the aux input:

0Hz ÷ 500Hz

Operating temperature: -40°C ÷ +80°C

Precision: ≥ 0,25%

S2022 satisfy completely the new edition of the CEI 0-16, CEI 0-21, allegato terna A70 norm.


Chiedi un'offerta
Icona pdf S2022 Data sheet
Icona pdf USER MANUAL S2022 REV 4
Icona pdf S2022 Connection diagrams
